MOOD

MOOD is the series that combines a traditional look with cutting-edge aluminium technology. Thanks to the wide range of finishes and colours available, the radiators of this series are true pieces of interior design.

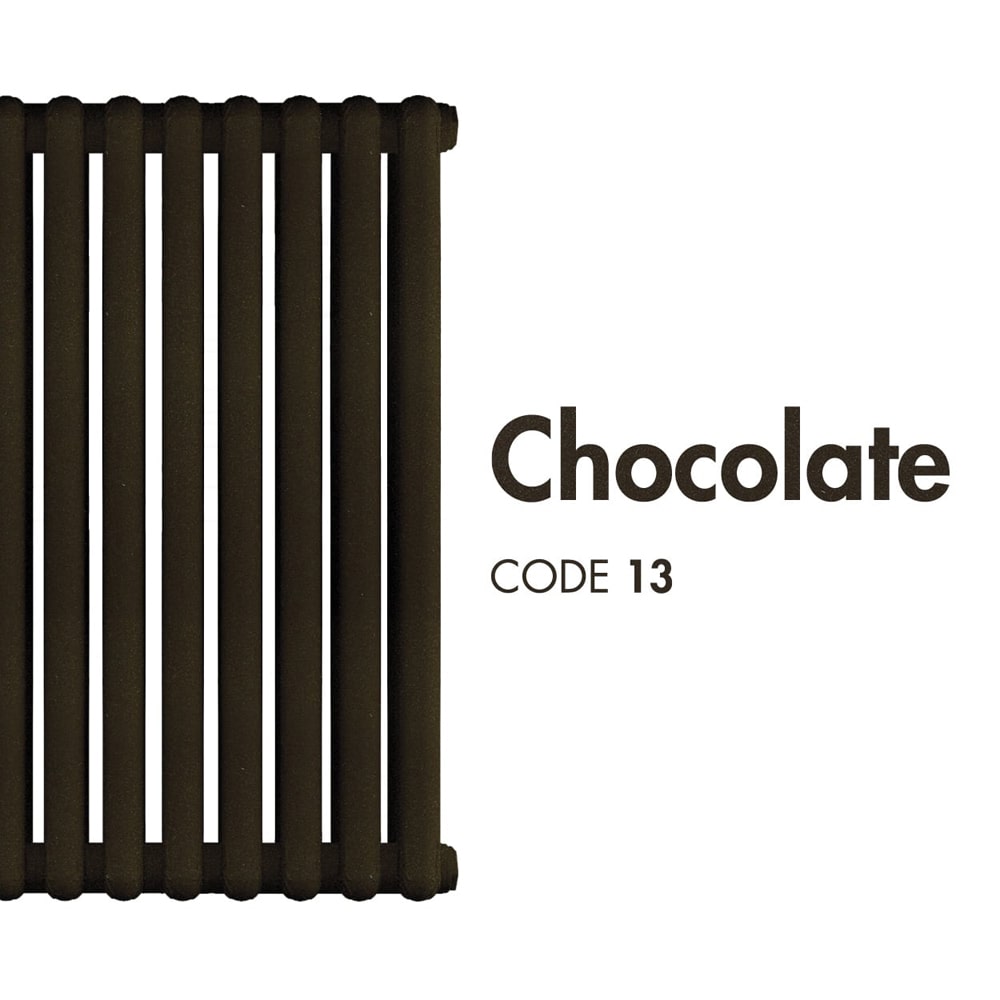

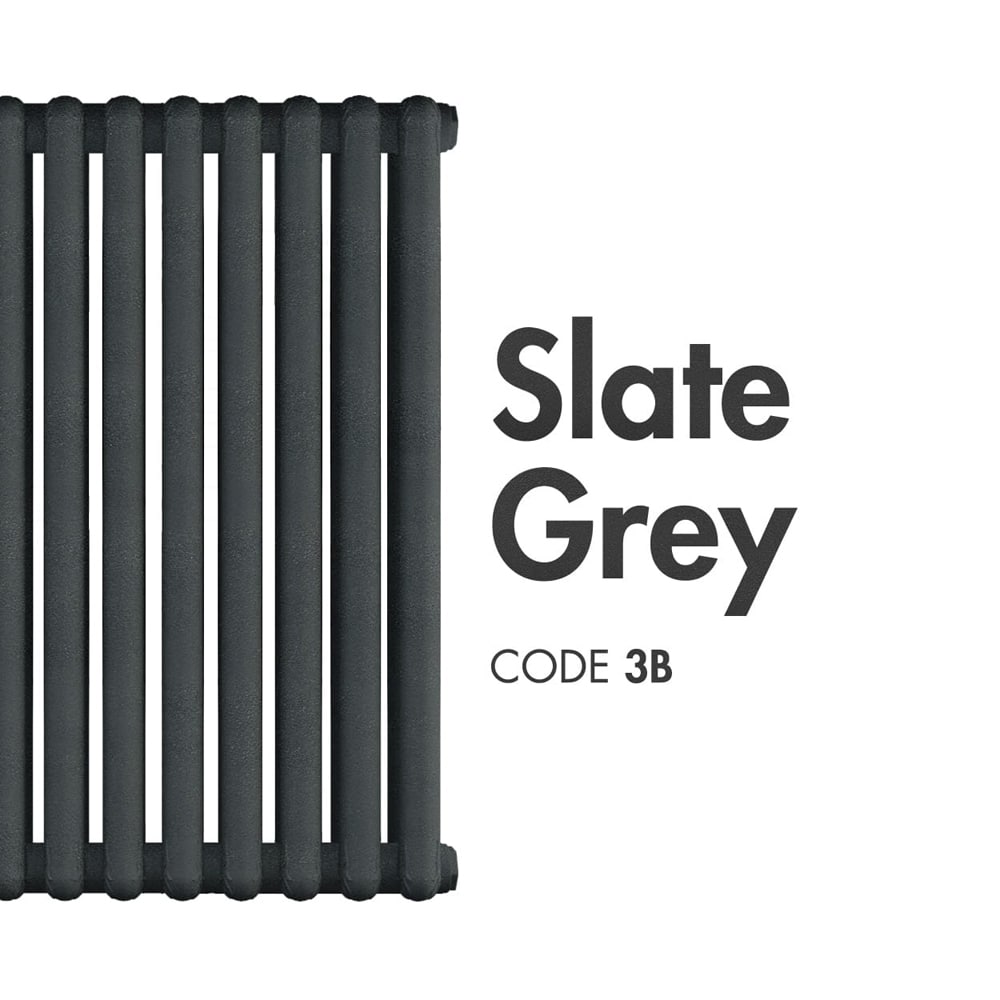

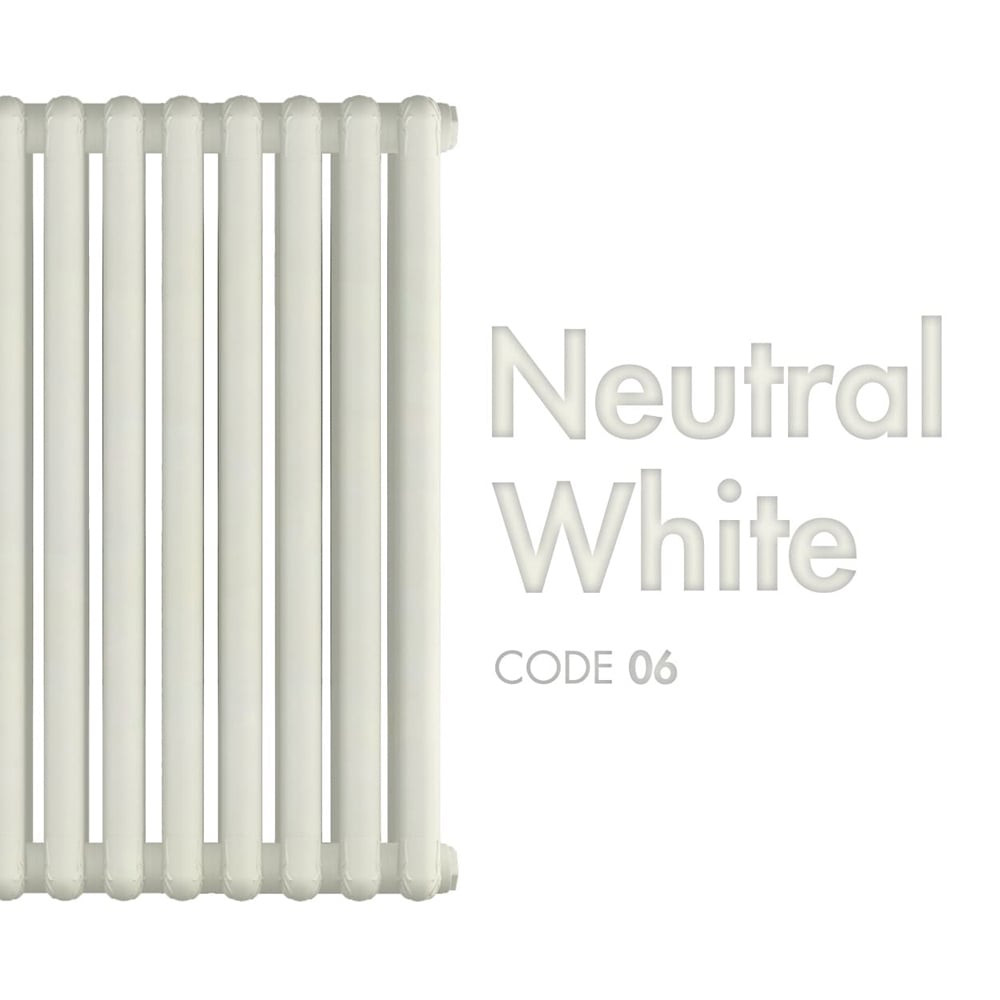

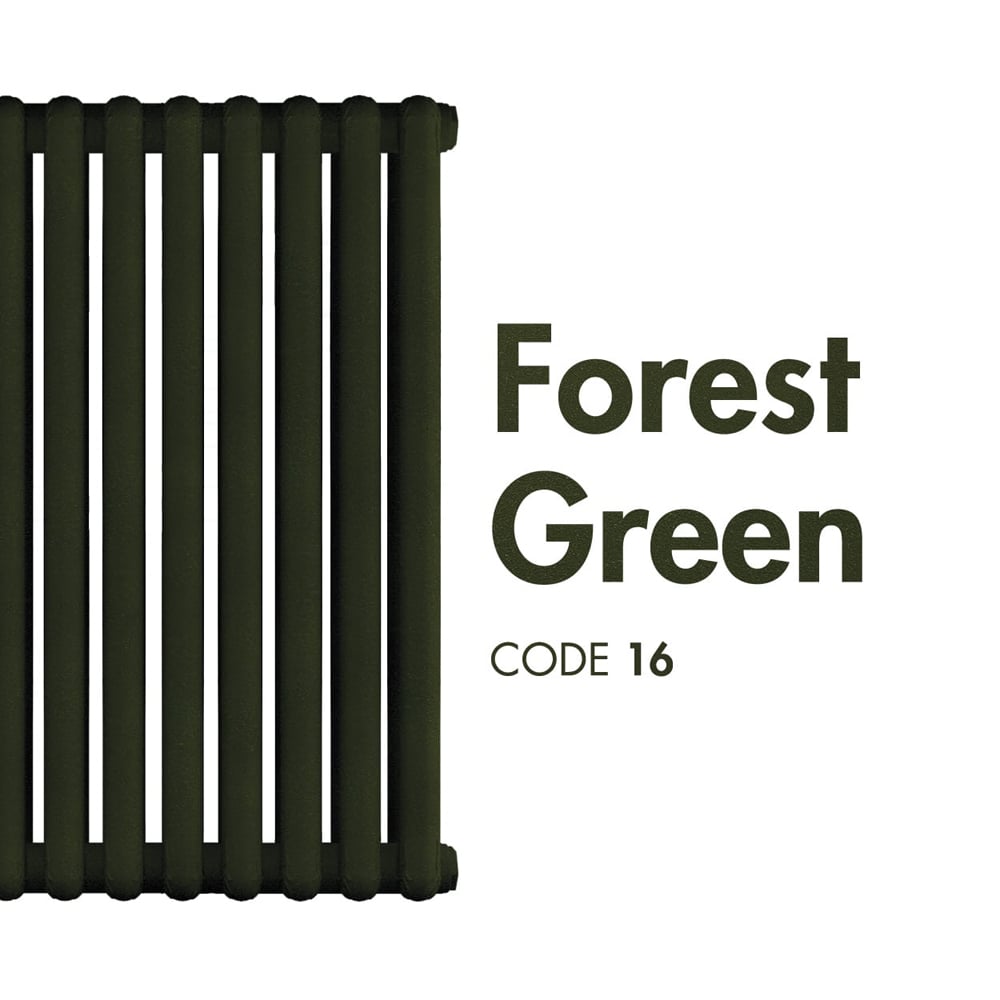

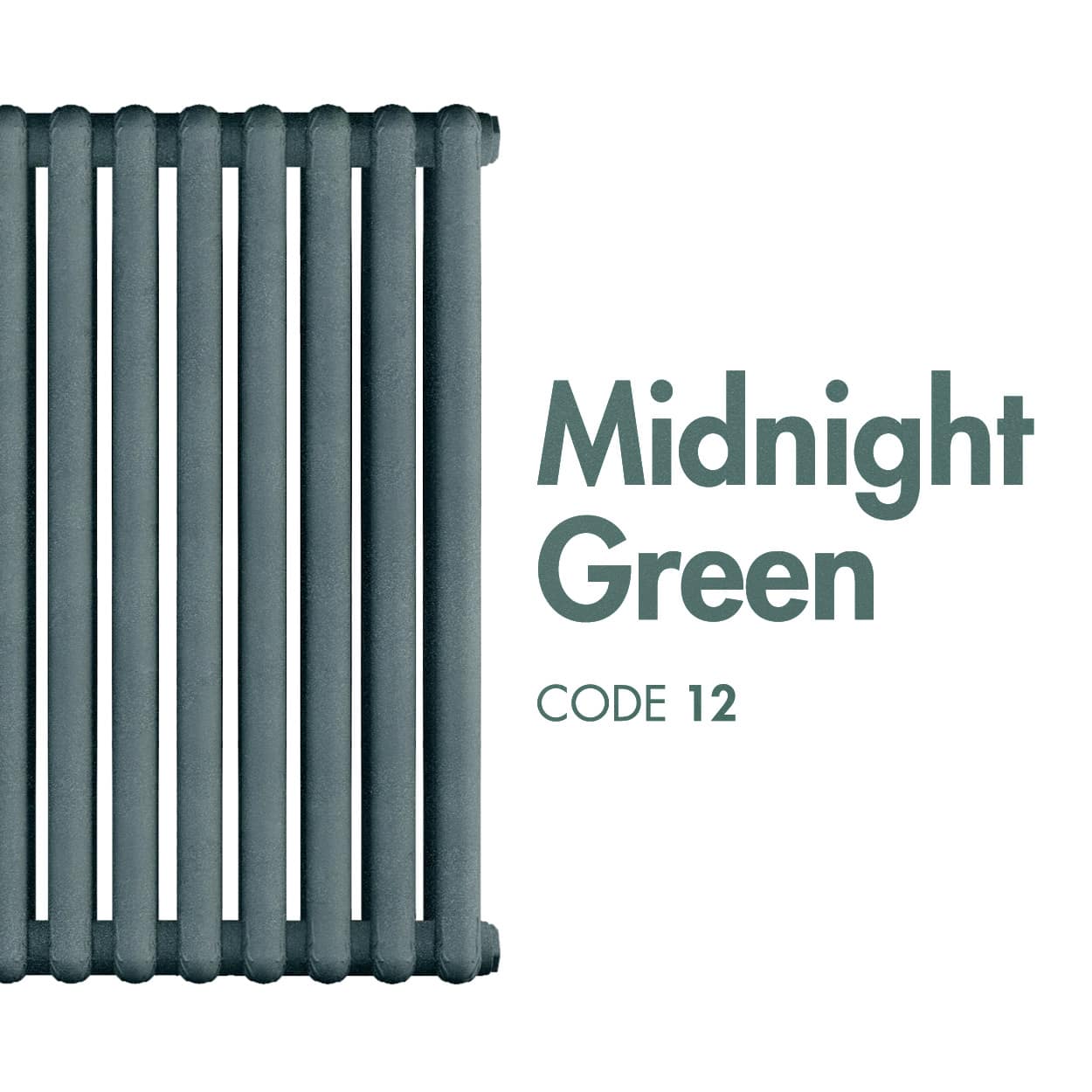

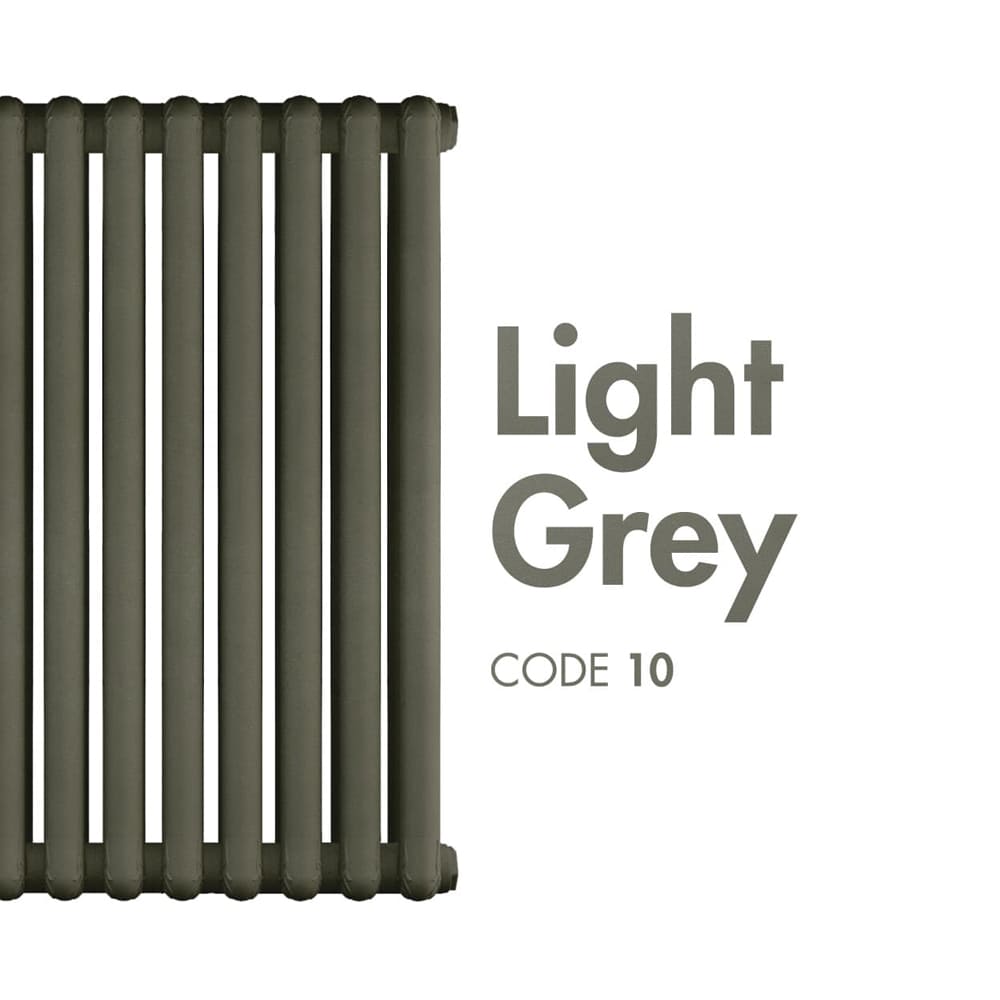

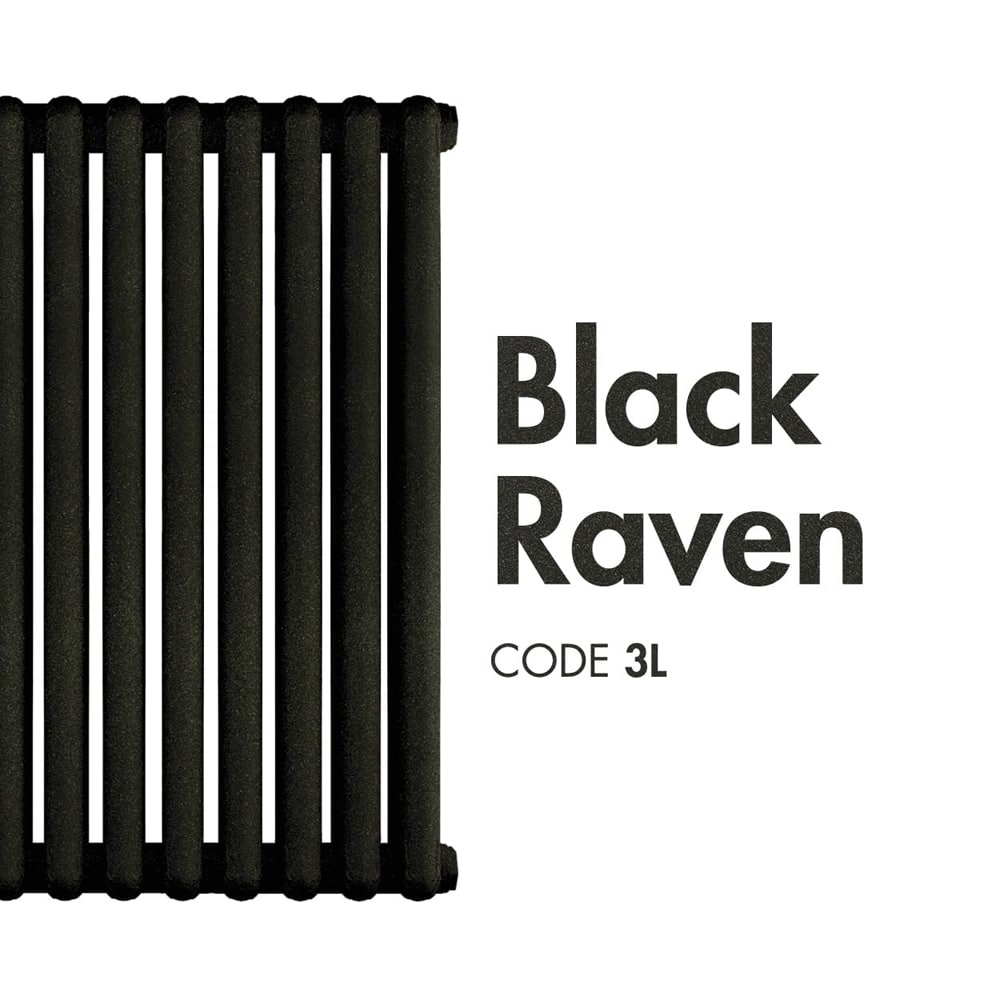

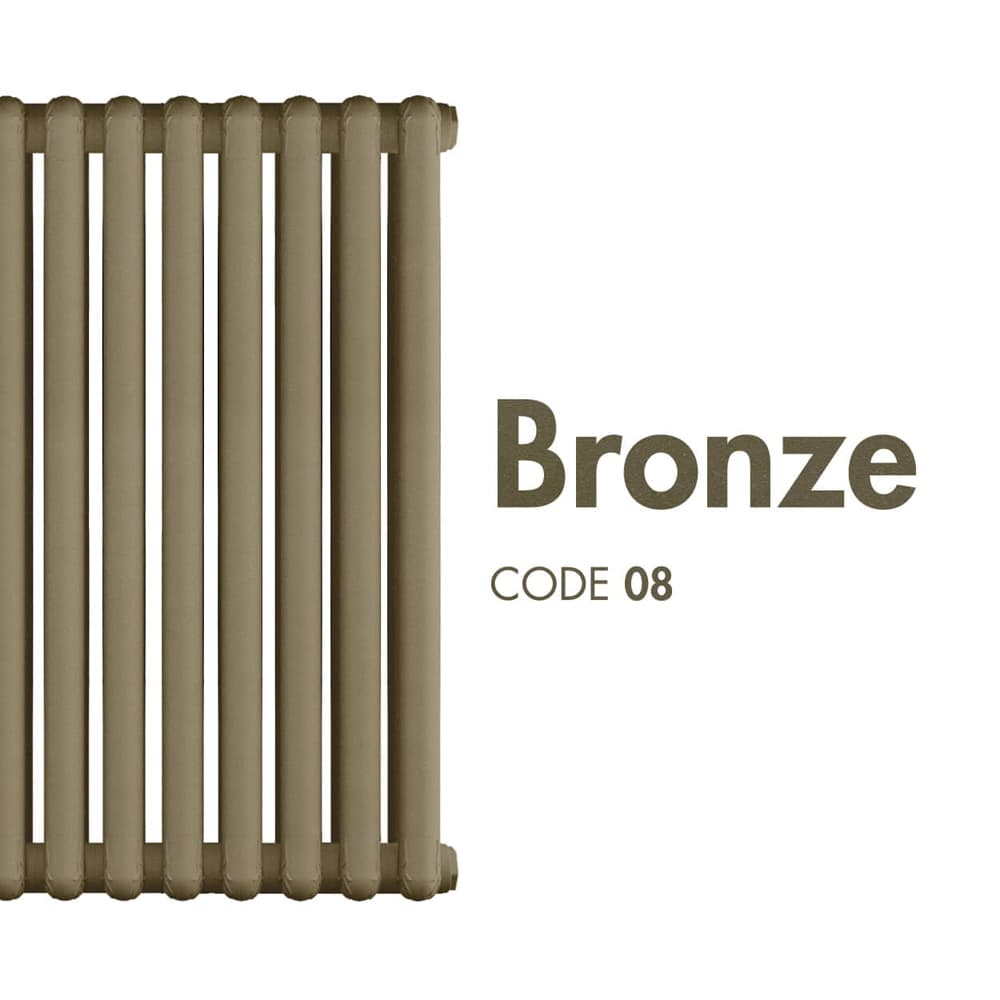

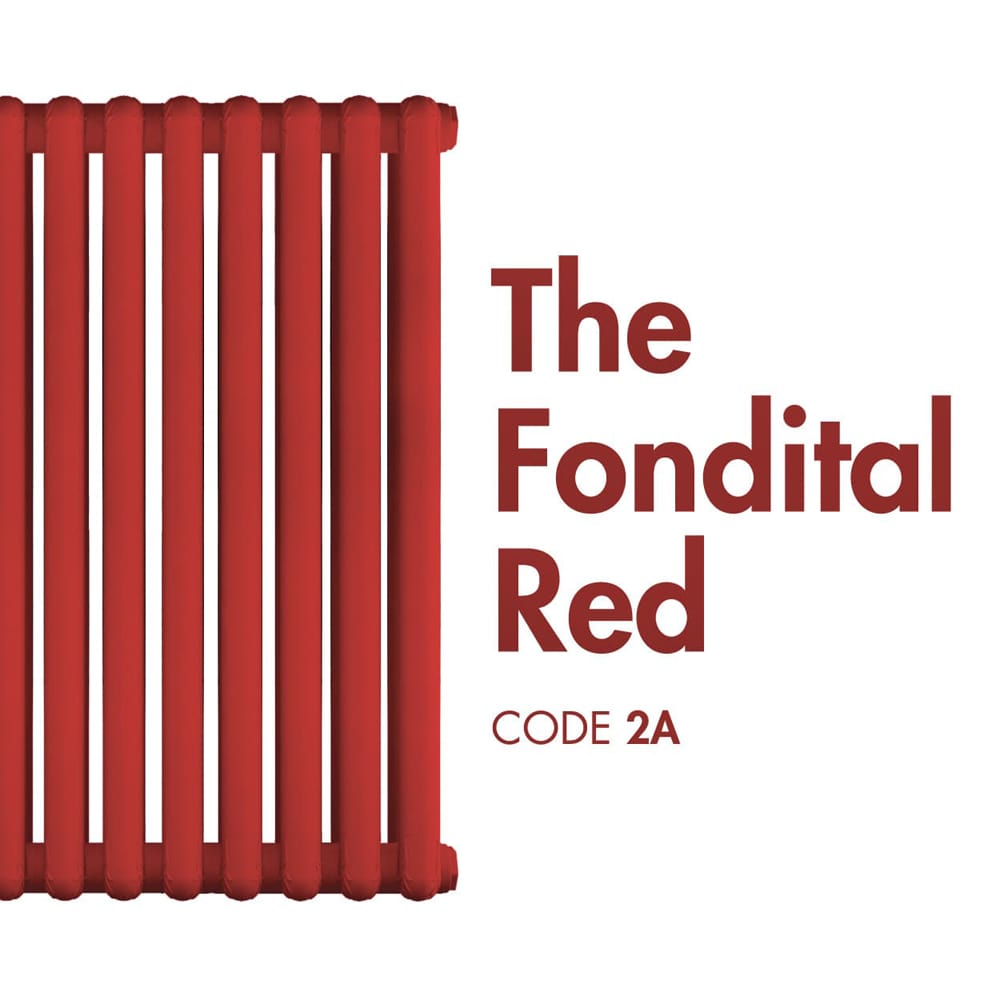

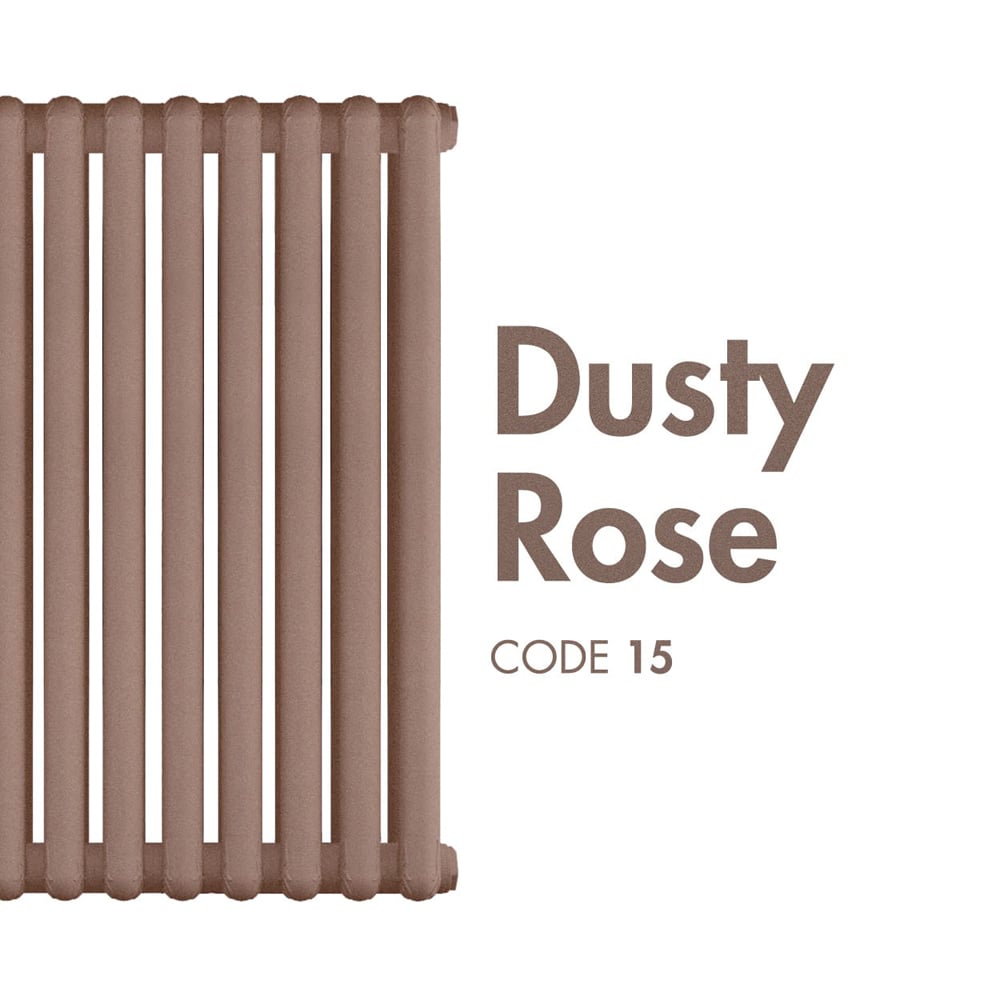

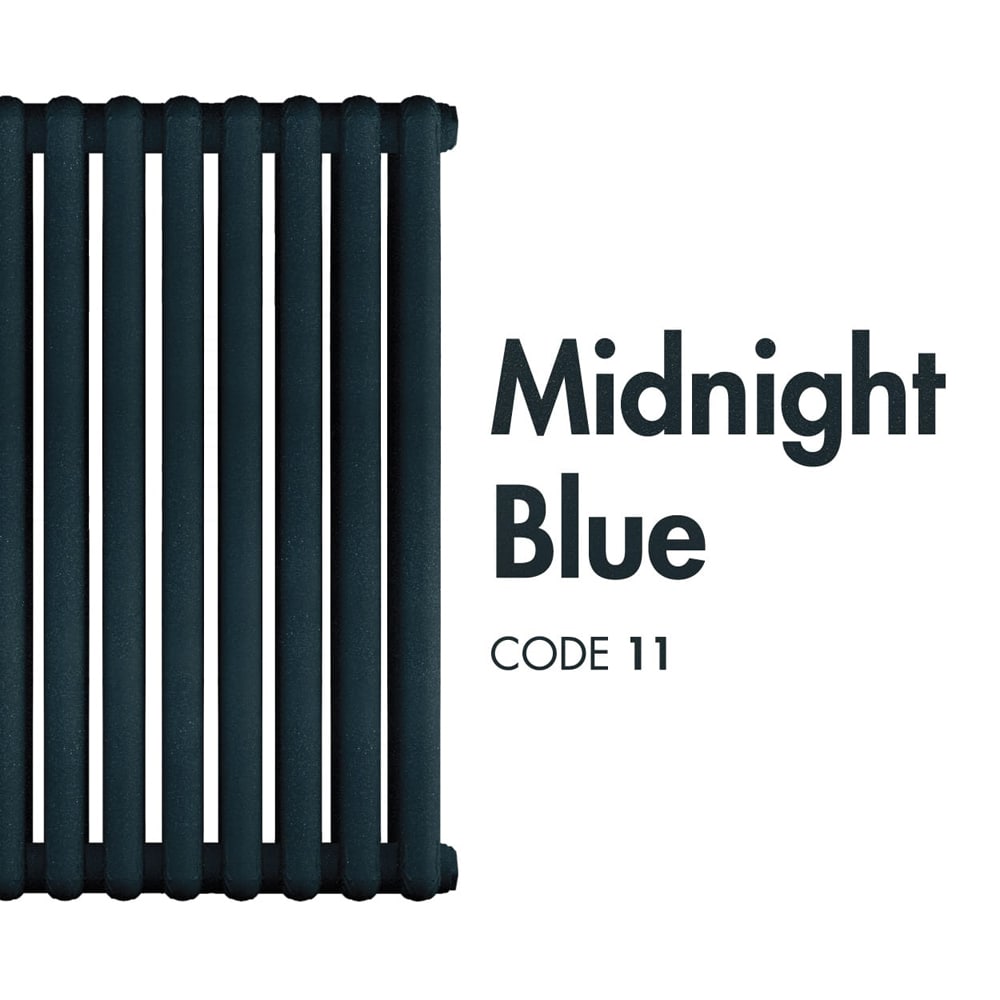

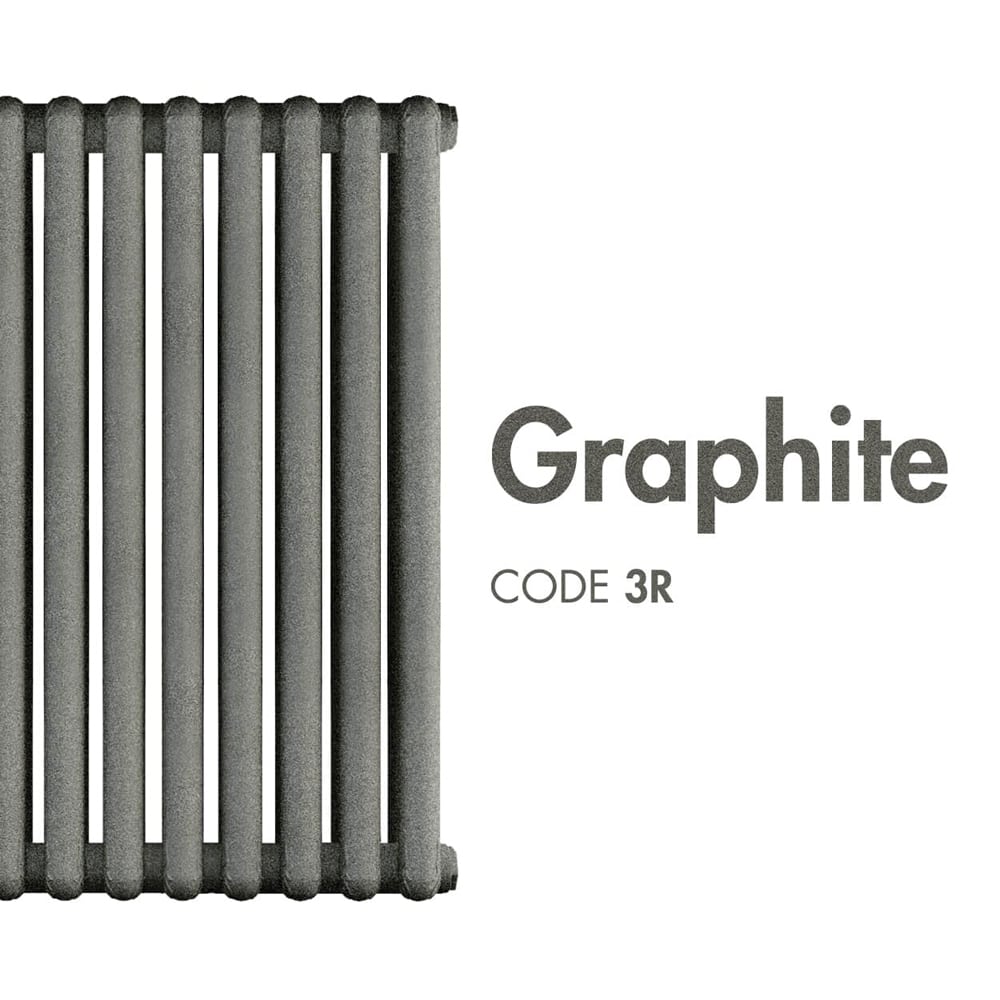

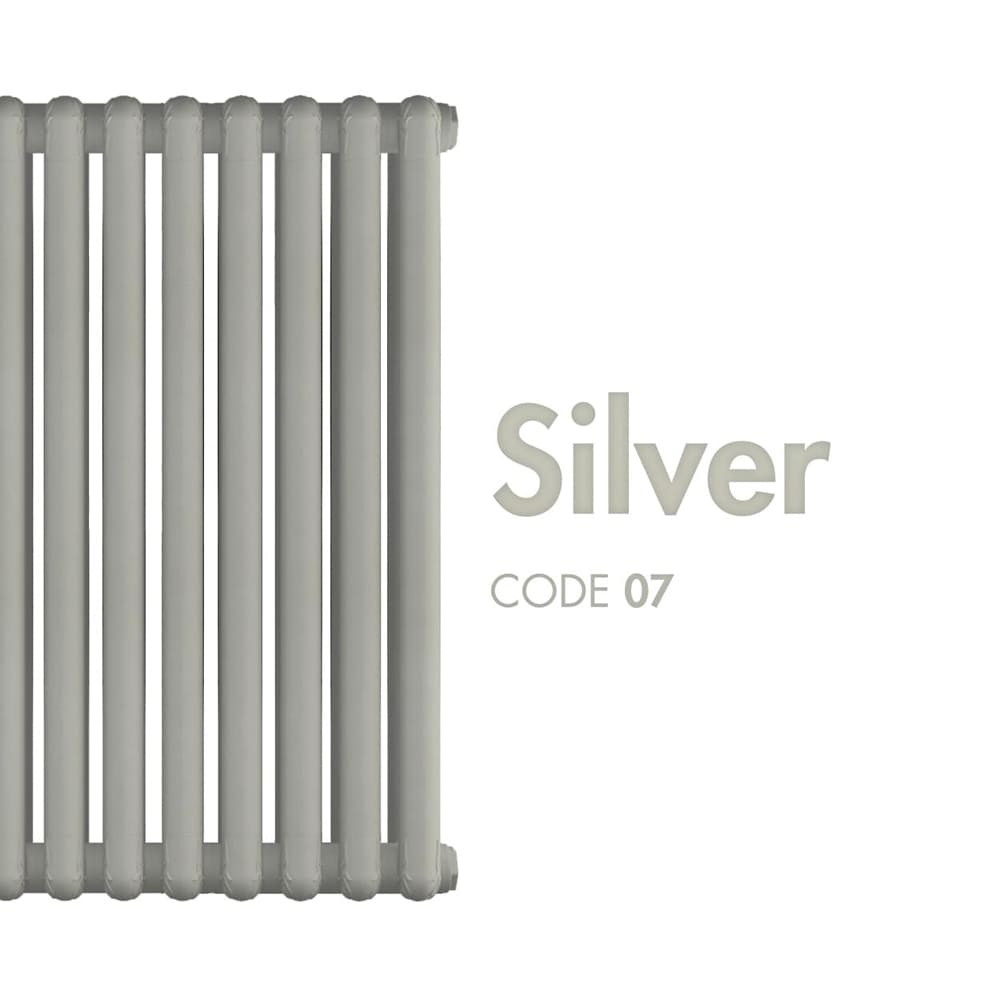

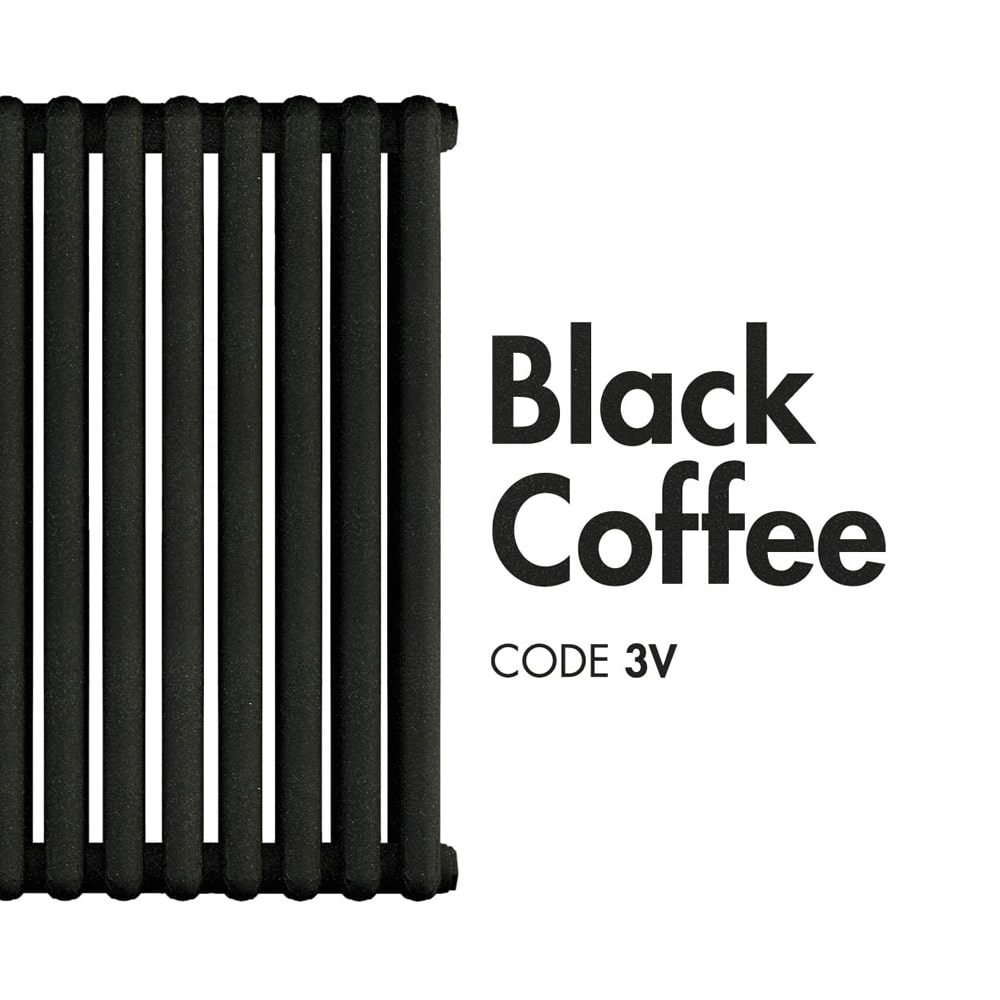

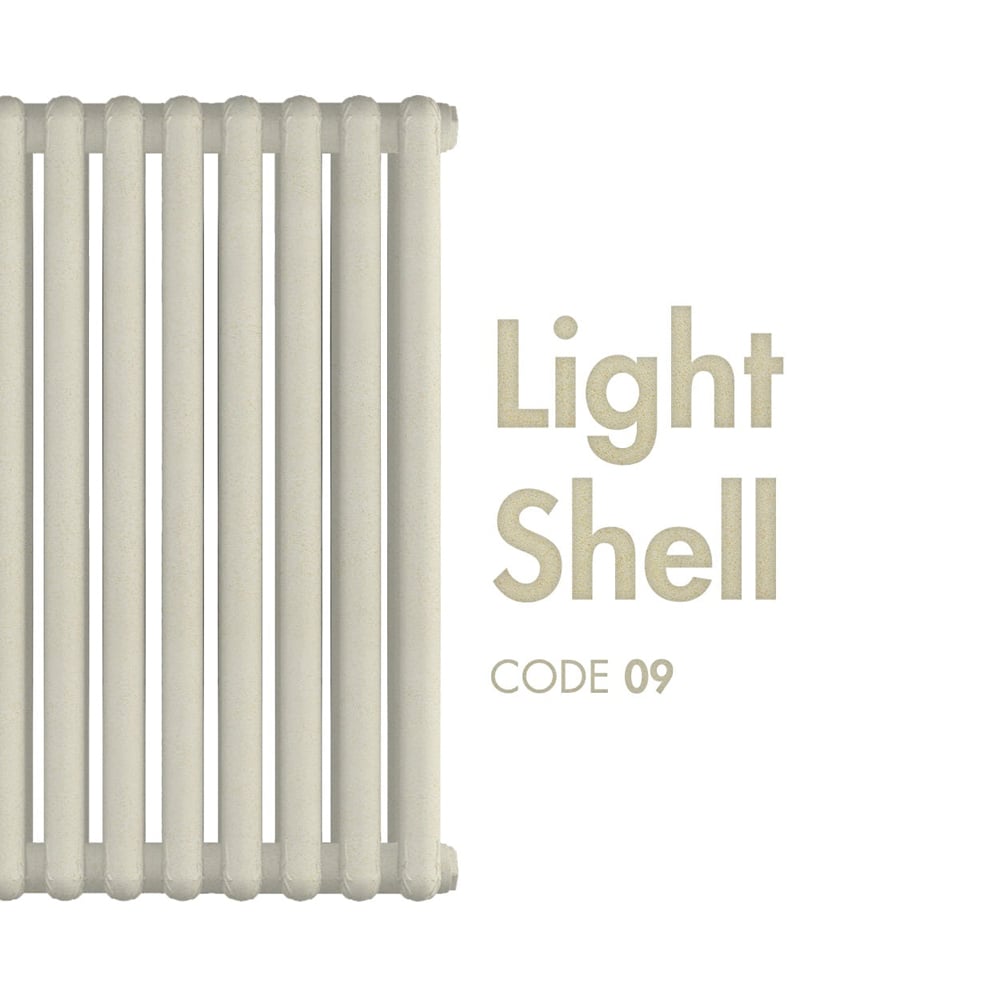

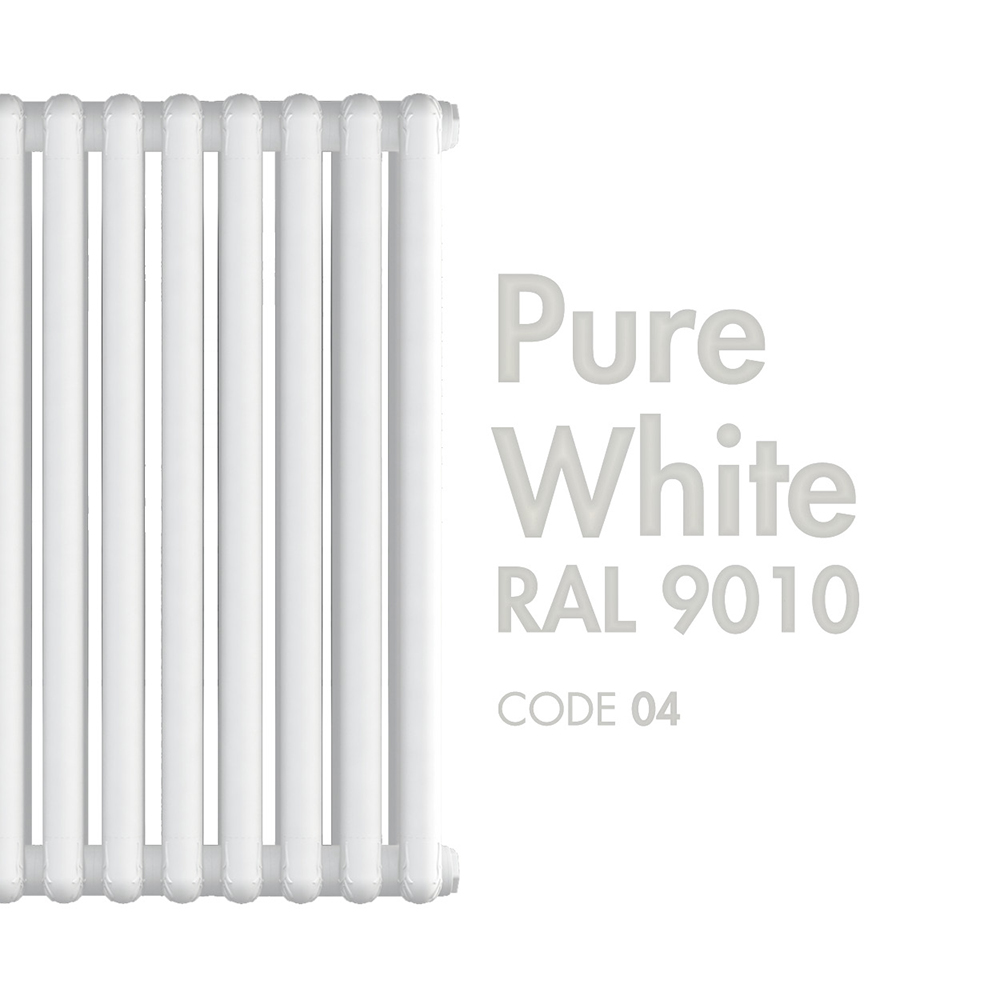

Colour range:

Product supplied under the brand name

PLUS

Aleternum total anti-corrosive treatment included in the price on all models
15- years warranty
Supporting feet is supplied with centre distances from 1000 to 2000 mm ( only aesthetic function)
100% MADE IN ITALY

Request Info

All models MOOD are guaranteed 15 years from installation date on manufacturing faults, provided that the installation has been performed in compliance with the current norms and respecting the instructions relating to the installation, the correct use and the correct maintenance.

Models	Depth (C) mm	Height (B) mm	Centre distance (A) mm	Length (D) mm	Connection diameters (inches)	Water capacity (Litres/sect.)	W/sect. (∆T 30kW)	W/sect. (∆T 50kW)	Exponent n	Coefficient (Km)
235	90	284	235	50	G1	0,43	16	30,6	1,2665	0,2158
335	90	384	335	50	G1	0,58	21,1	40,5	1,2792	0,2718
350	90	399	350	50	G1	0,71	21,8	41,9	1,2800	0,2799
435	90	484	435	50	G1	0,85	25,6	49,4	1,2849	0,3243
500	90	549	500	50	G1	0,95	28,5	55,1	1,2885	0,3566
535	90	584	535	50	G1	1	30,1	58,2	1,2905	0,3734
600	90	649	600	50	G1	1,10	32,9	63,8	1,2942	0,4037
685	90	734	685	50	G1	1,15	36,6	71,2	1,2990	0,4418
700	90	749	700	50	G1	1,18	37,3	72,5	1,2999	0,4484
800	90	849	800	50	G1	1,34	41,6	81,1	1,3055	0,4907
835	90	884	835	50	G1	1,38	43,1	84,1	1,3075	0,5050
900	90	949	900	50	G1	1,50	45,9	89,7	1,3091	0,5353
935	90	984	935	50	G1	1,56	47,5	92,7	1,3100	0,5514
1000	90	1049	1000	50	G1	1,66	50,3	98,3	1,3115	0,5812
1135	90	1184	1135	50	G1	1,88	56,2	110	1,3149	0,6420
1200	90	1249	1200	50	G1	1,98	59,9	115,7	1,3164	0,6809
1400	90	1449	1400	50	G1	2,28	67,9	133,3	1,3213	0,7583
1435	90	1484	1435	50	G1	2,36	69,5	136,4	1,3210	0,7771
1600	90	1649	1600	50	G1	2,60	77,1	151,2	1,3192	0,8673
1735	90	1784	1735	50	G1	2,85	83,4	163,4	1,3178	0,9430
1800	90	1849	1800	50	G1	2,95	86,4	169,4	1,3171	0,9801
1935	90	1984	1935	50	G1	3,10	92,9	181,9	1,3156	1,0585
2000	90	2049	2000	50	G1	3,22	96,1	188,1	1,3150	1,0970

Maximum working pressure: 1600 kpa (16 bar); Maximum working temperature: 120 °C
Characteristic equation of the model Ф=Кm ΔТn
The thermal efficiency values shown comply with the European Standard EN 442-1:2014 and are certified by the MRT Lab of the Milan Polytechnic, notified body №1695.

Useful documents

Catalogues
- Downloads
  14.27 MB

  GENERAL CATALOGUE - RADIATORS
- Downloads
  0.48 MB

  COLOUR TABLE
Declaration of performance
- Downloads
  0.53 MB

  DOP Mood ML

WARNING
These label files are made in compliance with the Regulations of the European Commission No. 811/2013 and 812/2013 supplementing the Directive of the European Commission 2010/30/EU. The labels are made available to retailers/distributors and can be downloaded here for information purposes in accordance to the provisions of Regulation 518/2014. The energy labels downloaded here CANNOT be applied to products placed on the market by Fondital before 26th September 2015. Anyone who makes improper use of the energy labels shall bear full liability and be held responsible for any other outcomes in accordance with the current legislation.
