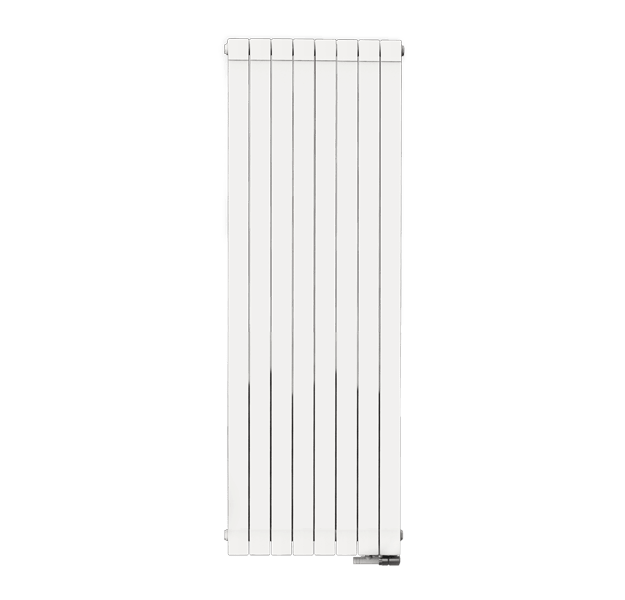

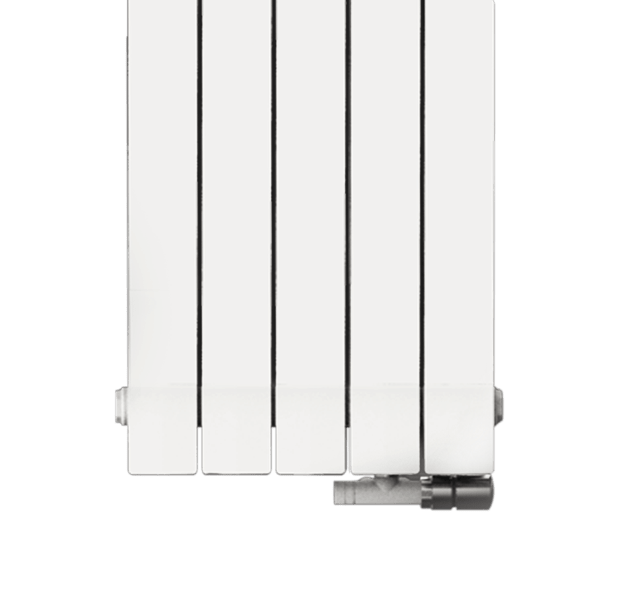

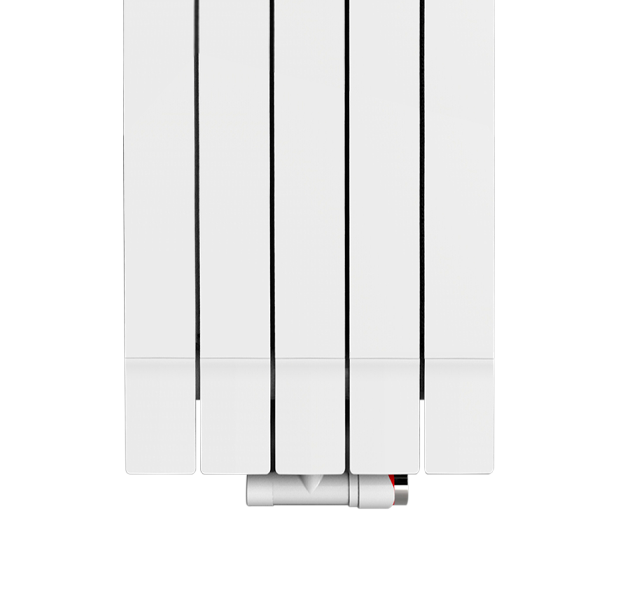

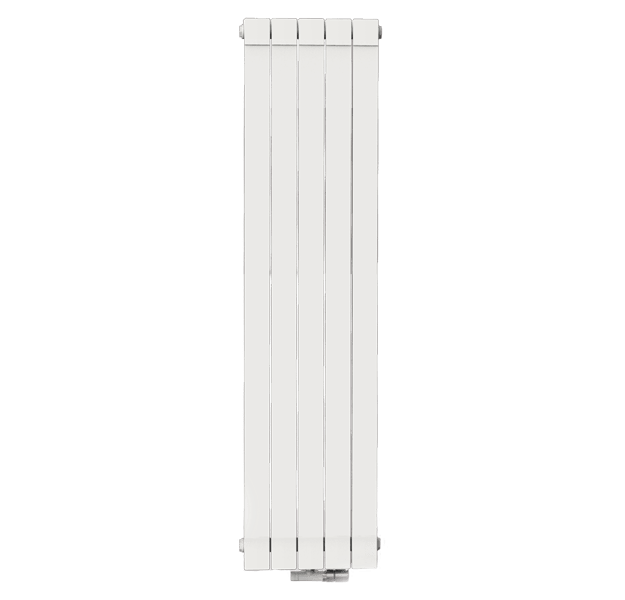

Specifically designed for installation with bottom connection, Garda S/90 AC offer an intelligent and flexible solution. Their main feature, vertical design, is the key to making the most of limited space.
All models JABOR S/90 AC are guaranteed 10 years from installation date on manufacturing faults, provided that the installation has been performed in compliance with the current norms and respecting the instructions relating to the installation, the correct use and the correct maintenance.

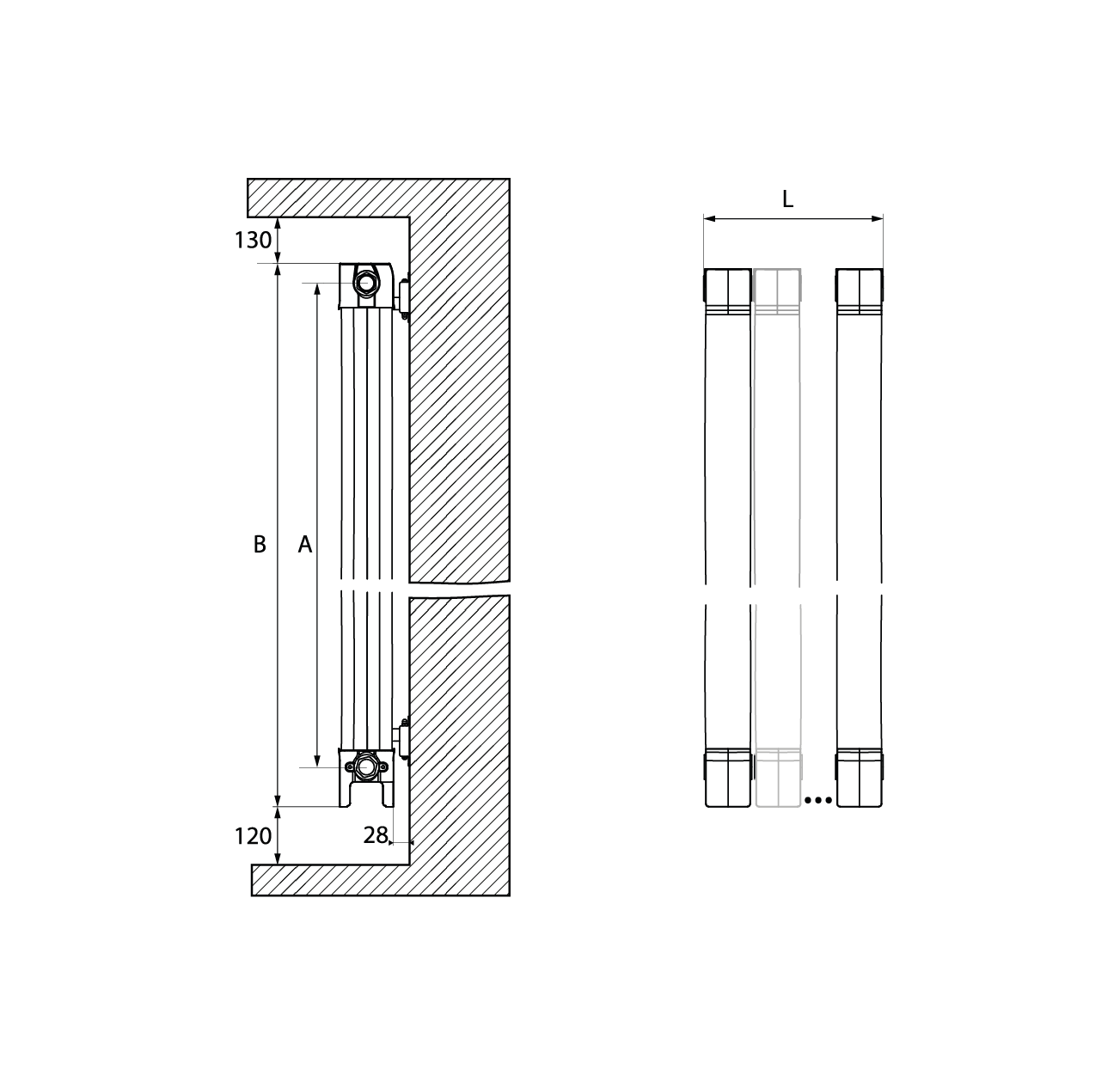

| Models | Depth (C) mm | Height (B) mm | Centre distance (A) mm | Length (D) mm | Connection diameters (inches) | Water capacity (Litres/sect.) | W/sect. (∆T 30kW) | W/sect. (∆T 50kW) | Exponent n | Coefficient (Km) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1600 | 90 | 1666 | 1600 | 80 | G1 | 0,70 | 135,9 | 275,0 | 1,3843 | 1,2260 |
| 1800 | 90 | 1866 | 1800 | 80 | G1 | 0,78 | 150,0 | 300,0 | 1,3570 | 1,4846 |
| 2000 | 90 | 2066 | 2000 | 80 | G1 | 0,86 | 159,5 | 324,0 | 1,3905 | 1,4083 |
| 1200/3 | 90 | 1287 | 2000 | 206 * | G 1/2 | 1,65 | 334 | 669 | 1,3610 | 3,2592 |
| 1200/5 | 90 | 1287 | 1187 | 420 * | G 1/2 | 2,75 | 556 | 1115 | 1,3610 | 5,4320 |
| 1200/7 | 90 | 1287 | 1187 | 580 * | G 1/2 | 3,85 | 779 | 1561 | 1,3610 | 7,6048 |
| 1200/9 | 90 | 1287 | 1187 | 740 * | G 1/2 | 4,95 | 1001 | 2007 | 1,3610 | 9,7776 |
| 1400/3 | 90 | 1487 | 1387 | 260 * | G 1/2 | 1,86 | 374 | 750 | 1,3600 | 3,6681 |
| 1400/5 | 90 | 1487 | 1387 | 420 * | G 1/2 | 3,10 | 624 | 1250 | 1,3600 | 6,1135 |
| 1400/7 | 90 | 1487 | 1387 | 580 * | G 1/2 | 4,34 | 874 | 1750 | 1,3600 | 8,5589 |
| 1400/9 | 90 | 1487 | 1387 | 740 * | G 1/2 | 5,58 | 1123 | 2250 | 1,3600 | 11,0043 |
| 1600/3 | 90 | 1687 | 1387 | 260 * | G 1/2 | 2,10 | 408 | 827 | 1,3843 | 3,6780 |
| 1600/5 | 90 | 1687 | 1587 | 420 * | G 1/2 | 3,50 | 680 | 1378 | 1,3843 | 6,1300 |
| 1600/7 | 90 | 1687 | 1587 | 580 * | G 1/2 | 4,90 | 951 | 1930 | 1,3843 | 8,5820 |
| 1600/9 | 90 | 1687 | 1587 | 740 * | G 1/2 | 6,30 | 1223 | 2481 | 1,3843 | 11,0340 |
| 1800/3 | 90 | 1887 | 1787 | 260 * | G 1/2 | 2,34 | 450 | 900 | 1,3570 | 4,4538 |
| 1800/5 | 90 | 1887 | 1787 | 420 * | G 1/2 | 3,90 | 750 | 1500 | 1,3570 | 7,4230 |
| 1800/7 | 90 | 1887 | 1787 | 580 * | G 1/2 | 5,46 | 1050 | 2100 | 1,3570 | 10,3922 |
| 1800/9 | 90 | 1887 | 1787 | 740 * | G 1/2 | 7,02 | 1350 | 2700 | 1,3570 | 13,3614 |
* including two blanking plugs.
Maximum working pressure: 1600 kpa (16 bar)
Characteristic equation of the model Ф=Кm ΔТn
Reference EN 442-1:2014.
