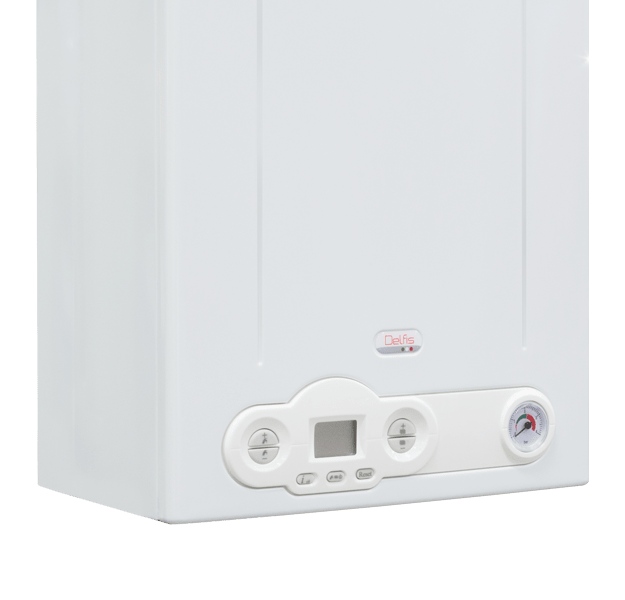

DELFIS CTN - EXTRA EU

Delfis mono-thermal is a wall-hung gas combi instant boiler. The boiler is available in open chamber (CTN) versions

PLUS

Ultra-compact
LCD user interface
7-litre expansion vessel
Boiler hydraulic replacement kit
Room temperature can be set from the boiler if an external probe is installed
Additional relay managing 2 heating zones

Request Info

FEATURES

Steel sheet and ceramic panels combustion chamber
Safety electronic board controlling burner electronic ignition, flame control via ionization
LCD interface to view CH flow water temperature, DHW temperature, failure codes, CH setting, DHW setting and operating status setting
Anti-fast, anti-freeze, pump anti-seizing, pump post-circulation and flue cleaning functions
Efficiency rating according to 92/42/EEC: CTFS ★★★ CTN ★★
Mono-thermal primary heat exchanger
Exclusive pump in compact version with integrated air-purging device
7-litre heating expansion vessel
Built-in hydraulic unit including automatic bypass, safety valve, pressure transducer, drain tap and expansion vessel connection
Pre-set to run on natural gas or LPG
Stainless steel DHW plate heat exchanger

This model is ONLY available for EXTRA EU countries

Models	Alimentation	Heat output [kW]	Efficiency at nominal heat output	Dimensions H x W x D [mm]	Gross weight [Kg]
DELFIS CTN 13	METHANE LPG	13,5	90,1%	700x400x250	23,5
DELFIS CTN 24	METHANE LPG	24,5	90,1%	700x400x250	23,5

Useful documents

Catalogues
- Downloads
  4,85 MB

  CTC DELFIS RANGE
- Downloads
  25,14 MB

  CTC BOILERS - EXTRA EU - EN
Technical instructions
- Downloads
  6,1 MB

  IST DELFIS CTN / RTN /CTFS /RTFS - EN EXTRA EU

ADVICE
The present label files are made in compliance with the Commission Delegated Regulation No. 811/2013 supplementing Directive 2010/30/EU..
These labels are made available to retailers / distributors and can be downloaded for information purposes in accordance with Regulation 518/2014.
Energy labels downloaded from here cannot be applied to products placed on the market by Fondital before 26th of September 2015.
Anyone using these energy labels in any improper way shall bear all liability and be held responsible for any other outcomes in accordance with current regulations.
