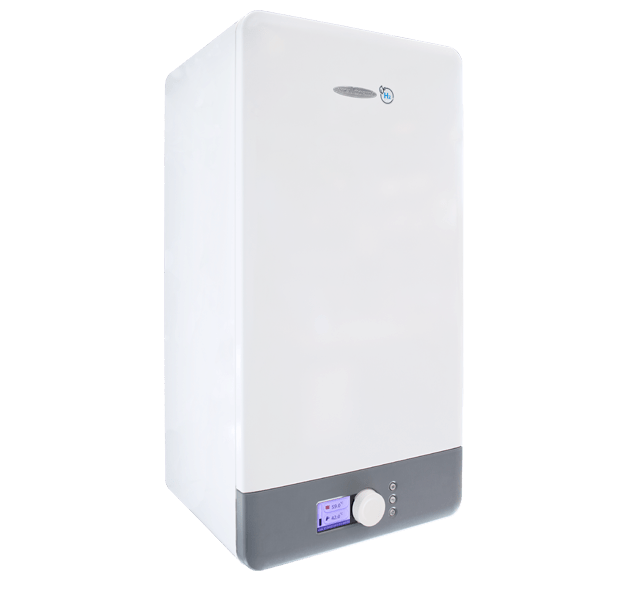

DELFIS NEXT KRB

Wall-hung condensing boiler, CH only, with integrated 3-way valve
Connection to an external hot water storage tank (optional)

PLUS

CERAMIXSTEEL COMBUSTION UNIT
- High durability exchanger: thanks to the all-stainless steel single coil and large passage section, it avoids clogging and guarantees high performance over time
- Ceramic quality: high-performance ceramic burner allowing a wider modulation range
ADVANCED ELECTRONICS intuitive and functional with large colour display
EASY INSTALLATION simple and practical fixing and maintenance
ALTERNATIVE SOURCES CONFIGURATION through an intelligent algorithm it acts as a control unit for alternative energy sources
SMART CONNECTION can be connected to bms (integrated Modbus) and IOT building automation systems

Request Info

FEATURES

COMBINED COMFORT thanks to the room temperature probe, the functioning is adapted to the room temperature without the use of a thermostat
SOLAR PRO FUNCTION enables the management of a solar thermal system
HIGH ELECTRICAL INSULATION thanks to the IPX5D electrical insulation rating it can be installed outdoors in partially protected locations
HIGH EFFICIENCY thanks to the 1:9 modulation ratio, high performance is guaranteed
CUSTOMIZABLE OPERATING weekly programmable

Models	Alimentation	Rated heat input kW	Dimensions W x H x D [mm]	Gross weight [Kg]
NEXT KRB 12	METHANE PROPANE	12,0	400x750x315	29,5
NEXT KRB 24	METHANE PROPANE	23,7	400x750x315	29,5
NEXT KRB 28	METHANE PROPANE	26,7	400x750x315	31,5
NEXT KRB 32	METHANE PROPANE	30,4	400x750x315	32,0
