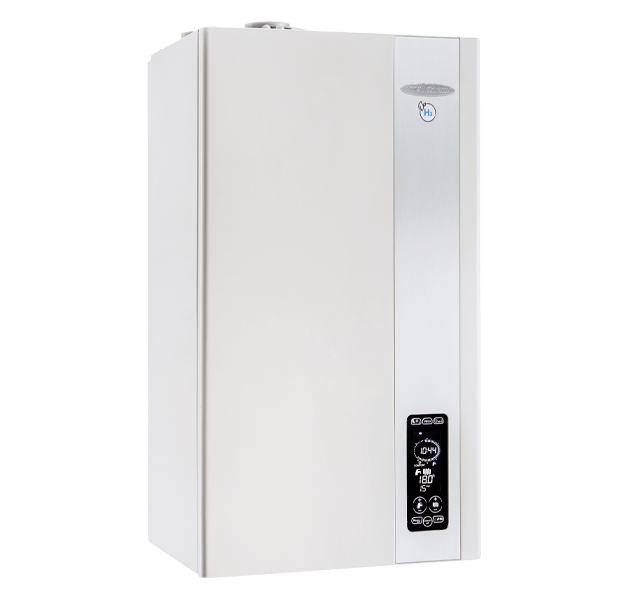

ORION KRB

Wall-hung condensing boiler, CH only, with integrated 3-way valve

Connection to an external hot water storage tank (optional)

PLUS

Ambient temperature probe supplied as standard
Temperature probe for water tank supplied as standard
Modulation ratio 1:9
Multifunction relay for connection to systems with zone valves or to external pump management or to remote alarm signal
Standard management of one type of thermal solar plant
Management of one heating zone with ambient temperature probe and two zones with zone kit
Integrated 3-way deviating valve

Request Info

FEATURES

External hot water storage tank heating setting (optional)
Thermosetting polymer-covered stainless steel heat exchanger
Thermoregulation with external probe (optional)
Heating expansion vessel - 10 litres
High-efficiency modulating circulation pump with built-in air purging device
Anti-legionella function for water heater

This model is ONLY available for EXTRA EU countries

Models	Alimentation	Rated heat input kW	Dimensions W x H x D [mm]	Gross weight [Kg]
ORION KRB 12	METHANE PROPANE	12,0	420x750x315	36,5
ORION KRB 24	METHANE PROPANE	23,7	420x750x315	37,0
ORION KRB 28	METHANE PROPANE	26,4	420x750x315	38,5
ORION KRB 32	METHANE PROPANE	30,4	420x750x315	40,0

Useful documents

Energy Labels
- Downloads
  2.51 MB

  Orion Krb 12 - EU ONLY
- Downloads
  2.08 MB

  Orion Krb 24 - EU ONLY
- Downloads
  2.08 MB

  Orion Krb 28 - EU ONLY
- Downloads
  1.64 MB

  Orion Krb 32 - EU ONLY
