The Ledro S/90 main feature is optimal space-saving as it extends vertically. Blends in with any style of furnishing.

The Ledro S/90 main feature is optimal space-saving as it extends vertically. Blends in with any style of furnishing.

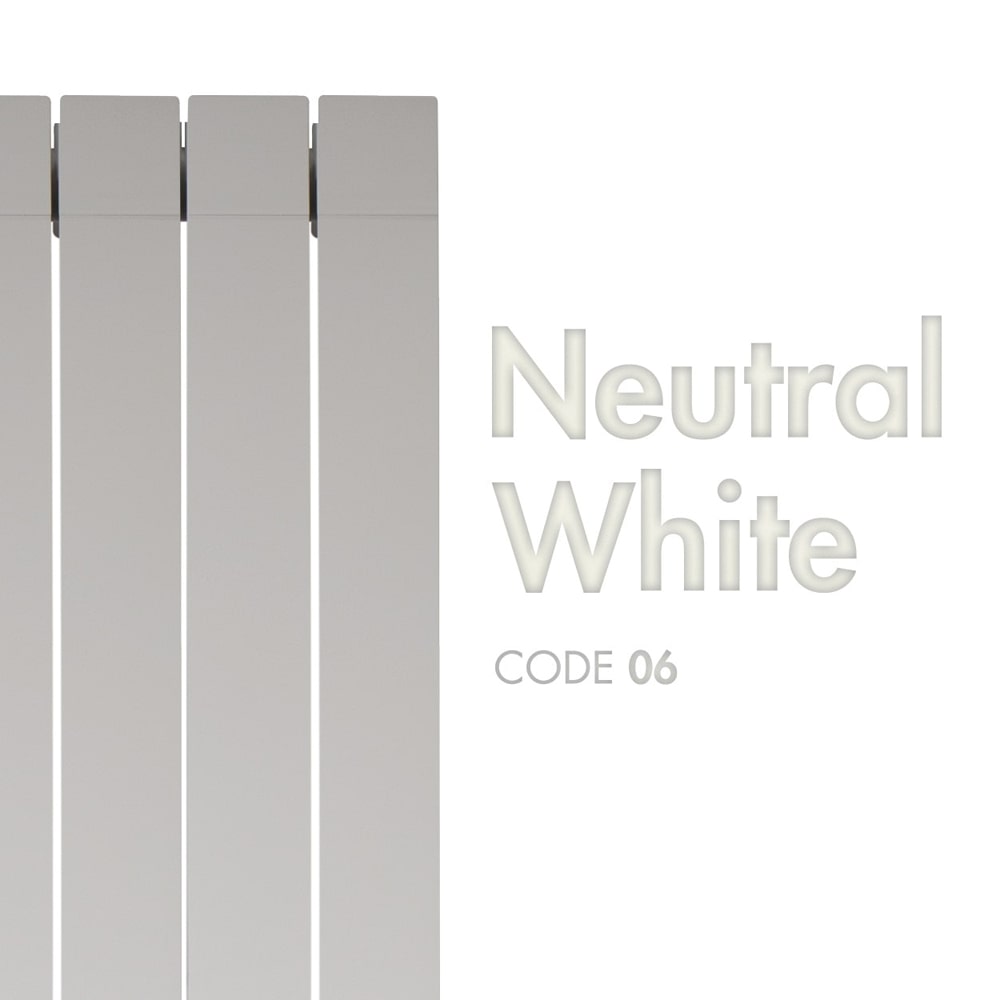

Colour range:
All models LEDRO S/90 are guaranteed 10 years from installation date on manufacturing faults, provided that the installation has been performed in compliance with the current norms and respecting the instructions relating to the installation, the correct use and the correct maintenance.
Models | Depth (C) mm | Height (B) mm | Centre distance (A) mm | Length (D) mm | Connection diameters (inches) | Water capacity (Litres/sect.) | W/sect. (∆T 30kW) | W/sect. (∆T 50kW) | Exponent n | Coefficient (Km) |
---|---|---|---|---|---|---|---|---|---|---|
900 | 90 | 966 | 900 | 80 | G1 | 0,43 | 90,9 | 182,0 | 1,3605 | 0,8886 |
1000 | 90 | 1066 | 1000 | 80 | G1 | 0,47 | 97,2 | 195,0 | 1,3630 | 0,9426 |
1200 | 90 | 1266 | 1200 | 80 | G1 | 0,55 | 111,3 | 223,0 | 1,3610 | 1,0864 |
1400 | 90 | 1466 | 1400 | 80 | G1 | 0,62 | 124,8 | 250,0 | 1,3600 | 1,2227 |
1600 | 90 | 1666 | 1600 | 80 | G1 | 0,70 | 135,9 | 275,0 | 1,3843 | 1,2260 |
1800 | 90 | 1866 | 1800 | 80 | G1 | 0,78 | 150,0 | 300,0 | 1,3570 | 1,4846 |
2000 | 90 | 2066 | 2000 | 80 | G1 | 0,86 | 159,5 | 324,0 | 1,3905 | 1,4083 |
Maximum working pressure: 1600 kpa (16 bar)
Characteristic equation of the model Ф=Кm ΔТn
The thermal efficiency values shown comply with the European Standard EN 442-1:2014 and are certified by the Cetiat, notified body №1623.
